Bad Elf Flex App: Standalone Data Collection

Bad Elf Flex App: Standalone Data Collection

Bad Elf Flex App: Standalone Data Collection

Introduction

Collect data using the Bad Elf Flex App.



Step-by-Step

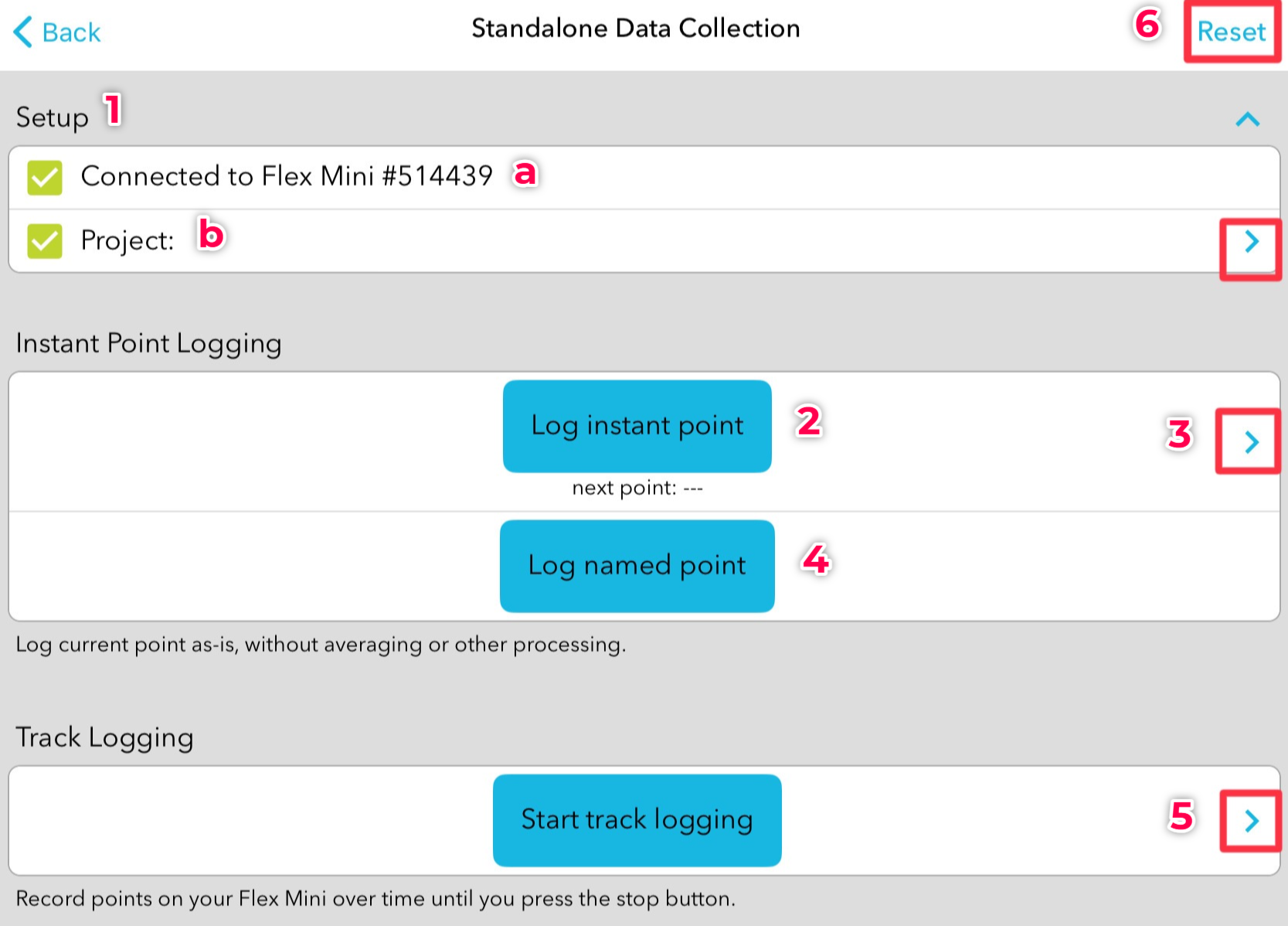

From the Home Screen Navigate to: Data Collection→ Standalone Data Collection



  1. Setup checklist verifies:
    1. App is connected to Bad Elf
    2. Project name is set if desired

  2. Log instant point: The name is incremented based on what is entered as the point name prefix.

  3. Point name prefix: Tap to change the point name prefix.

  4. Log named point: Log a point outside of instant point increments. Here you can designate a separate named point.

  5. Track log settings: Adjust the interval of saved points for track logs.

  6. Start/stop track logging: Record points on your Flex over time until you press the stop button. Track logging will also automatically be stopped upon device power down.
