Bad Elf Flex: Keypad breakdown

Bad Elf Flex: Keypad breakdown

Keypad

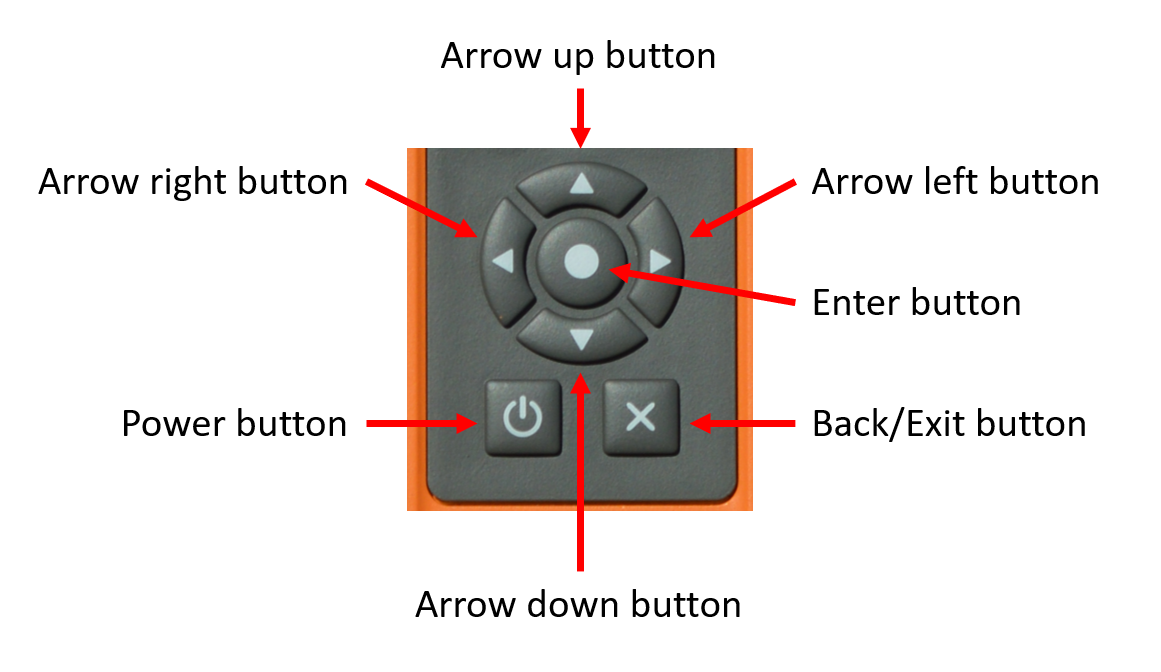

The keypad on the front of the Bad Elf Flex provides buttons for interacting with the screens and menus. Descriptions for each button are provided in the table below.



Button

Function

Arrow buttons

Used to navigate the menus, submenus, and selections found in the one of the Bad Elf Flex features

Enter button

Used to accept an action or open a submenu within a feature

Back button

Used to exit a submenu or feature

Power button

Holding for 3 seconds to power on or power off the Bad Elf Flex.


Note: holding for 15 seconds achieves a system shutdown


For further assistance, please contact our support team via support@bad-elf.com.
