Bad Elf Flex Mini: LEDs

Bad Elf Flex Mini: LEDs

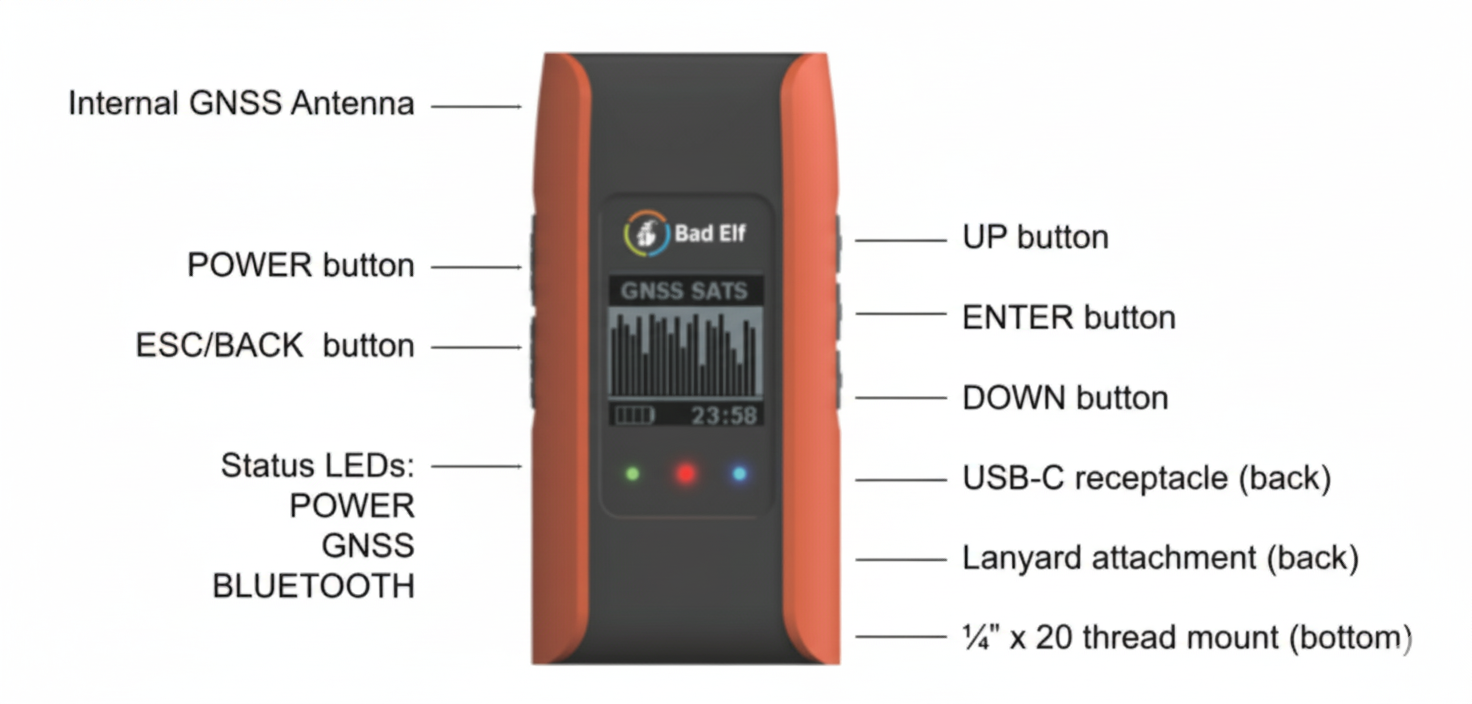

The LEDs located directly below the display show the following status information:


Power LED (left)

The power status LED indicates the battery condition, charging source type, and operating status.


Color

Meaning

Solid Green

Fully charged

Pulsing Green

Charging, battery > 75%

~2.5 sec interval => high current charging source

~5 sec interval => low current charging source

Pulsing Red

Charging, battery < 75%

~2.5 sec interval => high current charging source

~5 sec interval => low current charging source

Fast Red

Indicates charging is needed, or the external power source is not usable.

Fast Yellow

Battery temperature out of range for charging

None

Not charging


GNSS LED (center)

Color

Meaning

Solid Green

GNSS has a satellite lock

Solid Red

GNSS does not have a satellite lock


Bluetooth LED (right)

Color

Meaning

Solid Blue

Bluetooth connection established

None

No Bluetooth connection found


For further assistance, please contact our support team via support@bad-elf.com.
