Flex Settings Feature

• Correction source selection

• GNSS configuration

• Display settings

• Charging system status

• Flex information

• Digital bubble level calibration

• Temperature monitoring

• License information

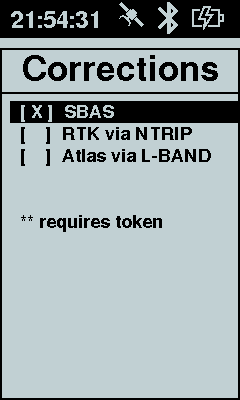

Correction source

This feature provides you the ability to explicitly select a corrections source. The “X”

If an option has an asterisk next to the text, this means that the option requires a Bad
Elf Flex token for selection.

To use Atlas L-Band corrections, you must have L-Band enabled via Bad Elf Flex token or
subscription, and you must explicitly select the L-Band option.

Using of L-Band will reduce the battery life. See specifications for more details.

• Use the up and down arrow buttons to select one of the corrections sources.


• Press the enter button on a selection to make it active

• Press the back button to return to the settings feature


GNSS Configuration

• To enable Forest Mode, use the down button to select Forest Mode


• Press the enter button to toggle Forest Mode on or off

• Press the back button to return to the settings feature


Forest mode allows the Flex to accept weaker signals from satellites. This may
improve the reception of additional or weak satellites. Using this feature may
degrade your positional accuracy slightly.

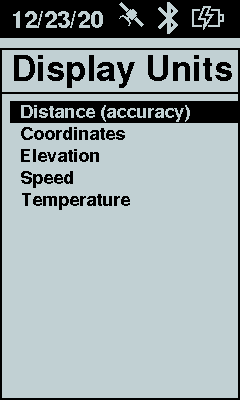

Display Settings

Actions

• Use the up and down arrow buttons to select an item you want to configure


• Press the enter button on a selected configuration item to display a list of available options

• Press the back button to return to the settings menu


Distance

This setting allows you to configure imperial or metric units for all horizontal distance
measurements shown on the Bad Elf Flex. The highlighted line represents the
currently selected option.

Actions

• Use the up and down arrow buttons to select imperial or metric


• Press the enter button on a selected item to make it active


• Press the back button to return to the settings menu


Coordinates

This setting allows you to configure the coordinate display for latitude and longitude
shown on the Bad Elf Flex. The highlighted line represents the currently selected option.

Actions

• Use the up and down arrow buttons to select a coordinate display configuration


• Press the enter button on a selected item to make it active


• Press the back button to return to the settings menu


Examples

• HDD ⇒ -111.23456

• DDM ⇒ 33 34.567

• DMS ⇒ 33 34 55.66

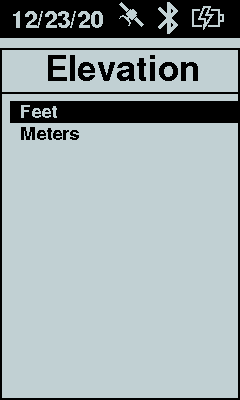

Elevation

This setting allows you to configure feet or meters for all vertical distance measurements
shown on the Bad Elf Flex. The highlighted line represents the currently selected option.

Actions

• Use the up and down arrow buttons to select feet or meters


• Press the enter button on a selected item to make it active


• Press the back button to return to the settings menu


Speed

This setting allows you to configure feet or meters for all vertical distance measurements
shown on the Bad Elf Flex. The highlighted line represents the currently selected option.

Actions

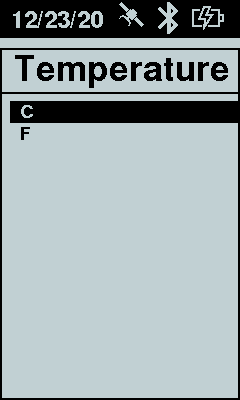

Temperature

This setting allows you to configure the temperature in Celsius or Fahrenheit as shown on
the Bad Elf Flex. The highlighted line represents the currently selected option.

Actions

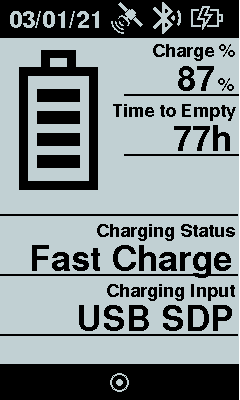

Charging System Information

This setting displays the current charging information for the Bad Elf Flex.

Field descriptions:

• Charge % - the charge level of the internal battery

• Time to Empty - the estimated hours remaining based on the current charging configuration.



  When connection and disconnecting a charge source please allow one minute for this value to stabilize

• Charging Status - the type of charging taking place based on the type of charge adapter being used.


• Charge Input - the type of charger detected by the Bad Elf Flex.

Battery Icon

Charging Input

Actions

• Press the enter button to show the charging system details.

• Press the back button to return to the settings menu.


Charging System Details

This screen shows detailed information for the internal systems of the Bad Elf Flex.
The information used on this screen is helpful for charging system diagnosis.

Actions

• Press the back button to return to the charging information screen..

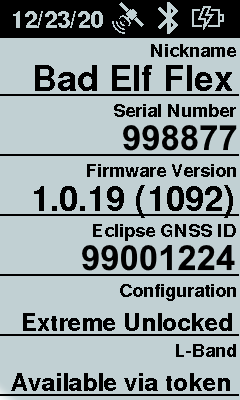

Flex Information

The Flex Information feature shows information specific to the Bad Elf Flex.

Field descriptions:

• Nickname - a friendly name for this receiver, modifiable in the Flex app

• Serial Number - the numeric serial number uniquely identifying this receiver. This number is also on the sticker on the back of the Bad Elf Flex.

• Firmware version - numeric information of the firmware version X.X.X and build number (YYYY)

• Eclipse GNSS ID - this is the unique serial number of the GNSS module inside the Bad Elf Flex

• Configuration - a single line of text that indicates how the receiver is configured. A Bad Elf Flex uses the text Standard (GPS,L1). A Bad Elf Flex Extreme uses the text Extreme Unlocked.

• L-Band - availability of L-Band services. Available by token means that the receiver can use L-Band by consuming a token. Token in use means that L-Band is currently available. L-Band Expires MMDDYY means there is an L-Band subscription that will expire on the given date.

• Press the back button to return to the settings menu


Digital Level Calibration

The digital level provides a visual reference to ensure proper vertical orientation of the Bad
Elf Flex. The bubble level is shown on the Primary GNSS Status Page. Calibrate the receiver
using this utility while positioning the receiver on a level surface.

• Set the Flex on a level surface. Press the enter button to save the calibration. The bubble should be approximately  centered in the image upon calibration, though some fluctuation may occur.


• Press the back button to return to the settings menu


This calibration is permanently stored with the Bad Elf Flex and does not need to be repeated
after powering off.

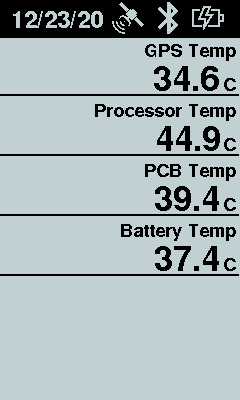

Internal Temperature Display

The Bad Elf Flex contains four sensors to monitor temperature inside the enclosure:

• GPS Temp - the temperature reported by the GNSS module

• Processor Temp - the temperature reported by the internal processor module

• PCB Temp - the temperature of the primary power circuitry printed circuit board

• Battery Temp - the temperature of the internal battery

Temperature display follows the Bad Elf Flex configuration for fahrenheit or celsius.

Actions

• Press the back button to return to the settings menu

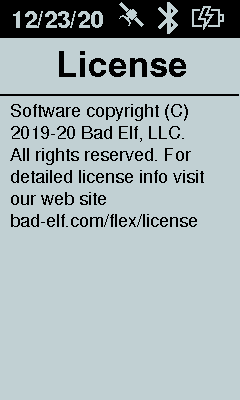

License Information

The license screen shows specific information about the Bad Elf Flex.

For more information see the Bad Elf Flex License page.

For further assistance, please contact our support team via support@bad-elf.com.
