Using an External Antenna

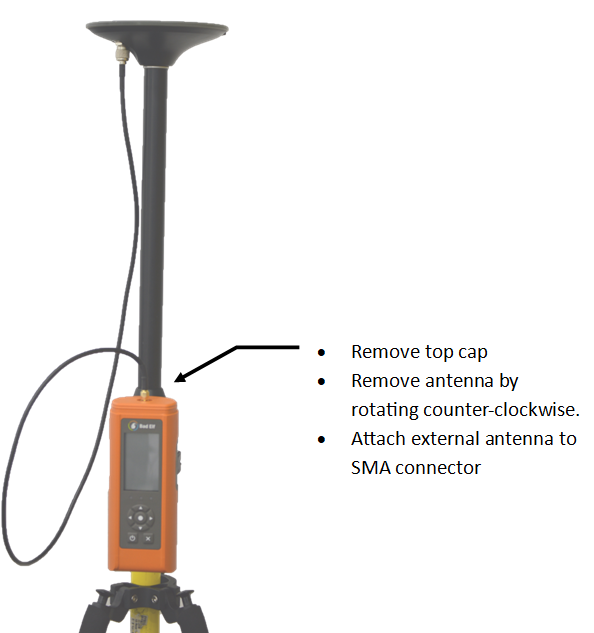

To connect an external antenna, remove the top cover by leaning it towards the back of the unit.

With the top cap removed, unscrew the helical antenna by rotating it counterclockwise as seen
from the top of the Bad Elf Flex.


The top connector utilizes a standard SMA connector. Attach your antenna using a 50-ohm cable.

Ensure the antenna being connected does not exceed the voltage and current limits defined in the Bad Elf Flex product specifications.

Height Reference

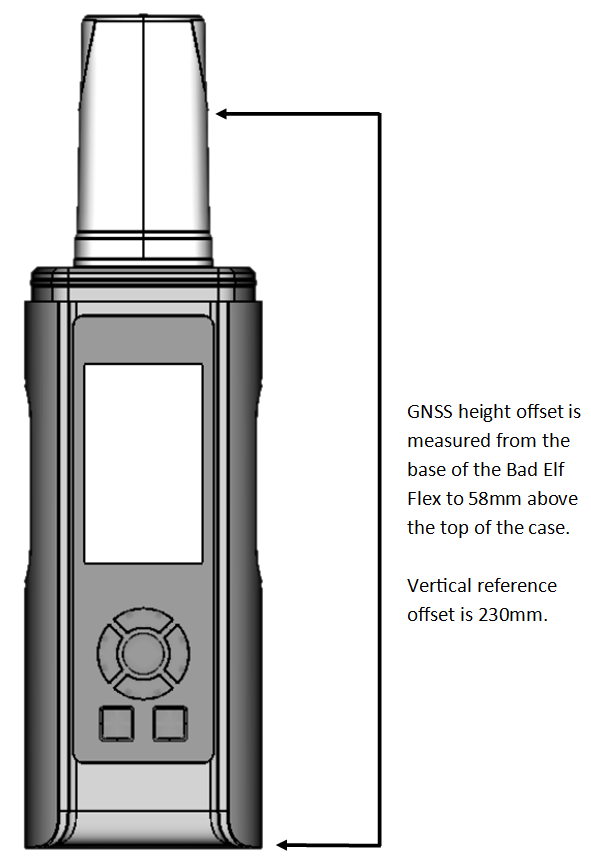

For measurements along the Z-axis, height reference, use the diagram below to assist in determining your
height offset.

For further assistance, please contact our support team via support@bad-elf.com.
