Bad Elf Flex: WiFi Function
WiFi Function
Use this feature to enable or disable the internal Wi-Fi capability
This feature is unused but may be enabled in future firmware releases.
Turning on Wi-Fi can limit Bluetooth range
Currently, there is no way to configure Wi-Fi networks

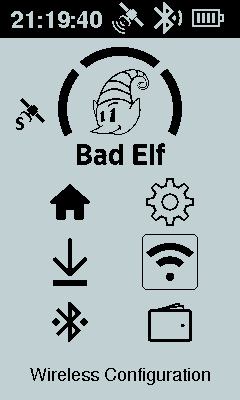

The main menu of the Wi-Fi Function displays status and configuration
The information displayed includes Wi-Fi module power, auto-connect enabled, IP address, and network name
Press the enter button
to enable or disable various settings
Press the back button
to return to the main menu
From the settings page
Press the up and down arrow buttons <> select a setting
Press the enter button
Press the back button
Turning the Wi-Fi on/off powers on/off the wifi module
Turning on auto-connect enables automatic connection to a stored Wi-Fi profile (SSID & password)

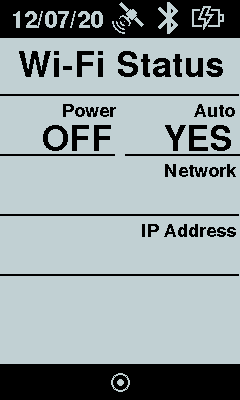

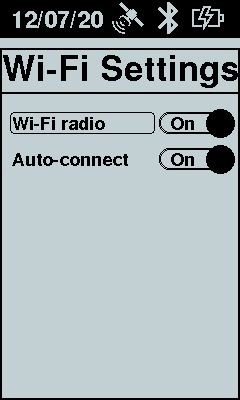

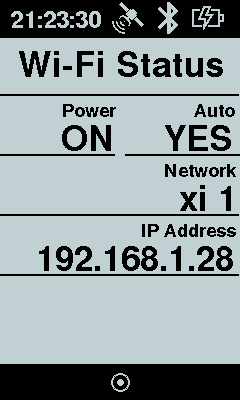

Wi-Fi status - powered off | WiFi status - powered on and connected | Wi-Fi settings - radio power and auto-connect |
