Direct Connect GPS: Through charging

Legacy Content: This article references our end of life product. For recommended product alternatives, see

Choosing the Right GPS/GNSS Receiver for Your Work →

iOS devices today require different levels of current to satisfy their individual requirements.  If you aren't sure about the requirement for your associated device you can find that in the table below.

iOS Model Name	Adapter Rating	Current Required
iPhone, iPod, iPad Mini (1st gen)	5W	1.0A
iPad (1st, 2nd,3rd, & 4th gen), iPad Mini (2nd, 3rd, & 4th gen)	10W	2.1A
iPad (5th & 6th gen), iPad Air, iPad Air 2, iPad Pro (9.7", 10.5", 12.9")	12W	2.4A

As initially configured the Bad Elf you have is only allowing 1A to flow through.  We have a setting to change this ... Your elf does need to be running a minimum firmware of v1.0.18 we can check that in the below process.

1. With the elf attached open our app and tap the entry in the menu for the elf.

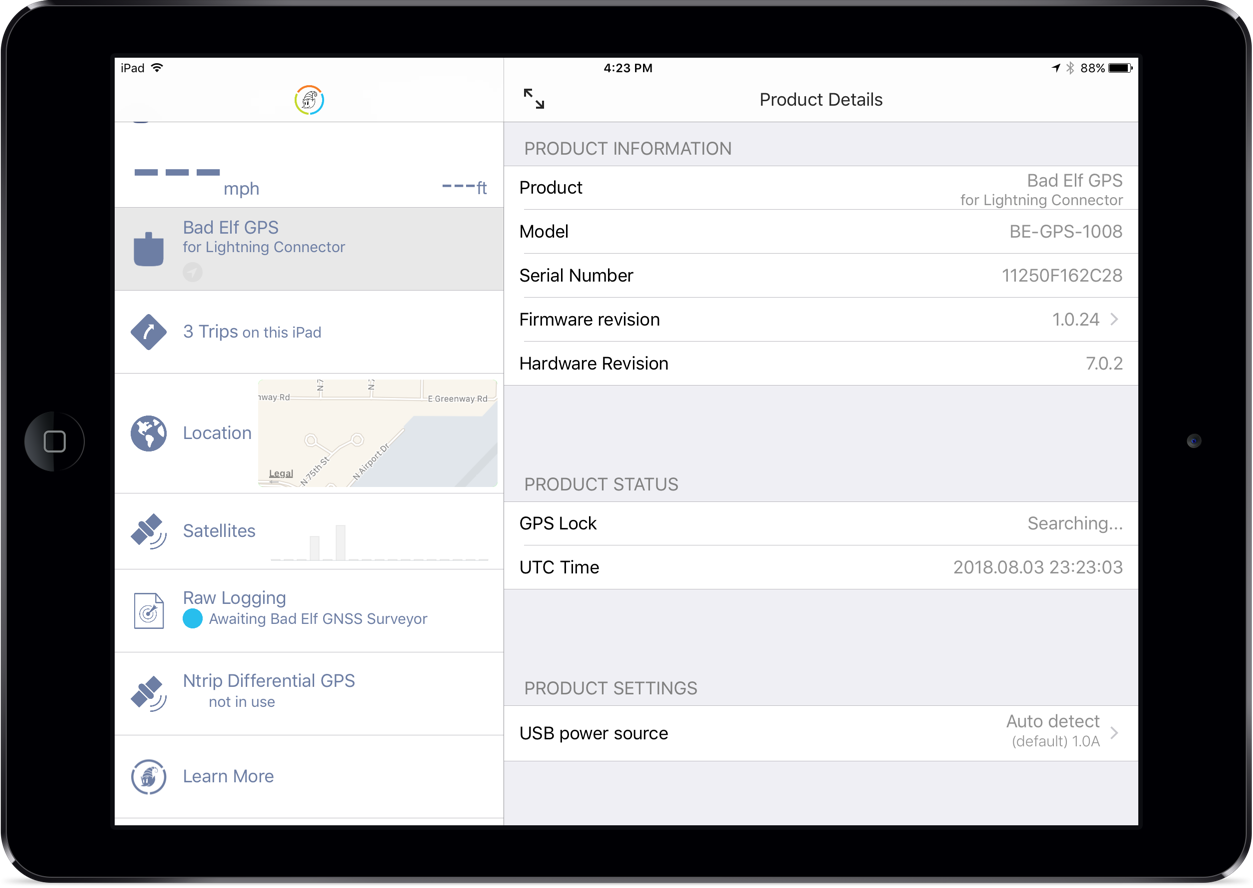

2. At the top you will see some product information, please confirm that the Firmware revision is listed is at least v1.0.18 - if not we will need to get you updated first.

3. Assuming your firmware is up to date.  At the bottom, you will see a sub-heading PRODUCT SETTINGS.

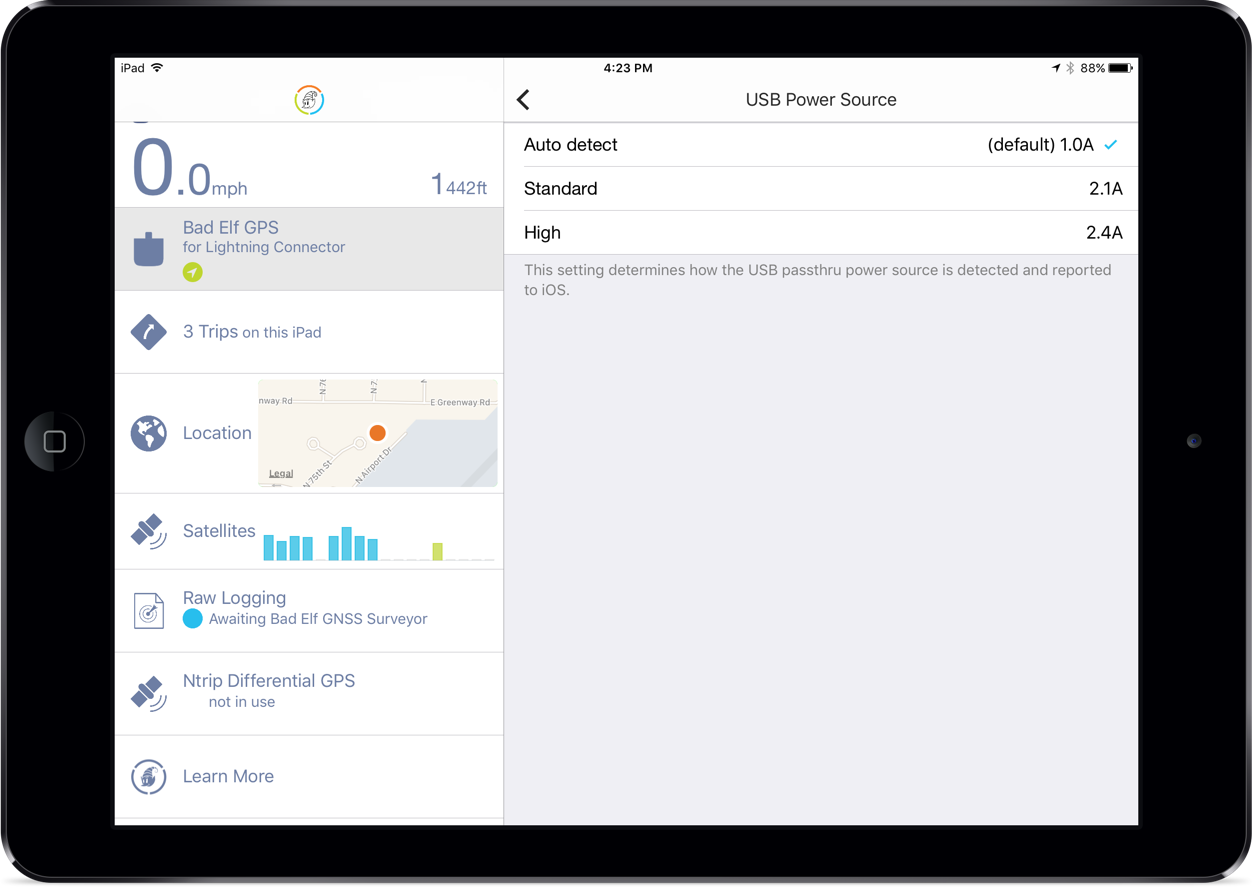

4. Select USB POWER SOURCE and set this to the appropriate current level for your iOS device.



If you aren't seeing a charging indicator (lightning bolt) in the upper right hand corner of the screen - please check that your AC/DC adapter is capable of charging your iOS device without the elf in-line.

For any further assistance, please contact our support team via support@bad-elf.com.
