BLUETOOTH PAIRING

1. On your phone or tablet, go to the Settings function and select Bluetooth
2. Find your Bad Elf receiver by serial number
3. Tap the entry to pair
4. For the Bad Elf GPS Pro, GPS Pro+, and GNSS Surveyor, press the bottom button on the receiver
5. For the Bad Elf Flex, press the enter button (button with a circle) on the receiver
6. If prompted on your phone or tablet, click on Accept to complete the pairing process


Configuring Esri Survey123 for ArcGIS

1. Start Survey123 for ArcGIS
2. On the main screen of Survey123 for ArcGIS, look for the menu icon in the upper right. Click this icon.

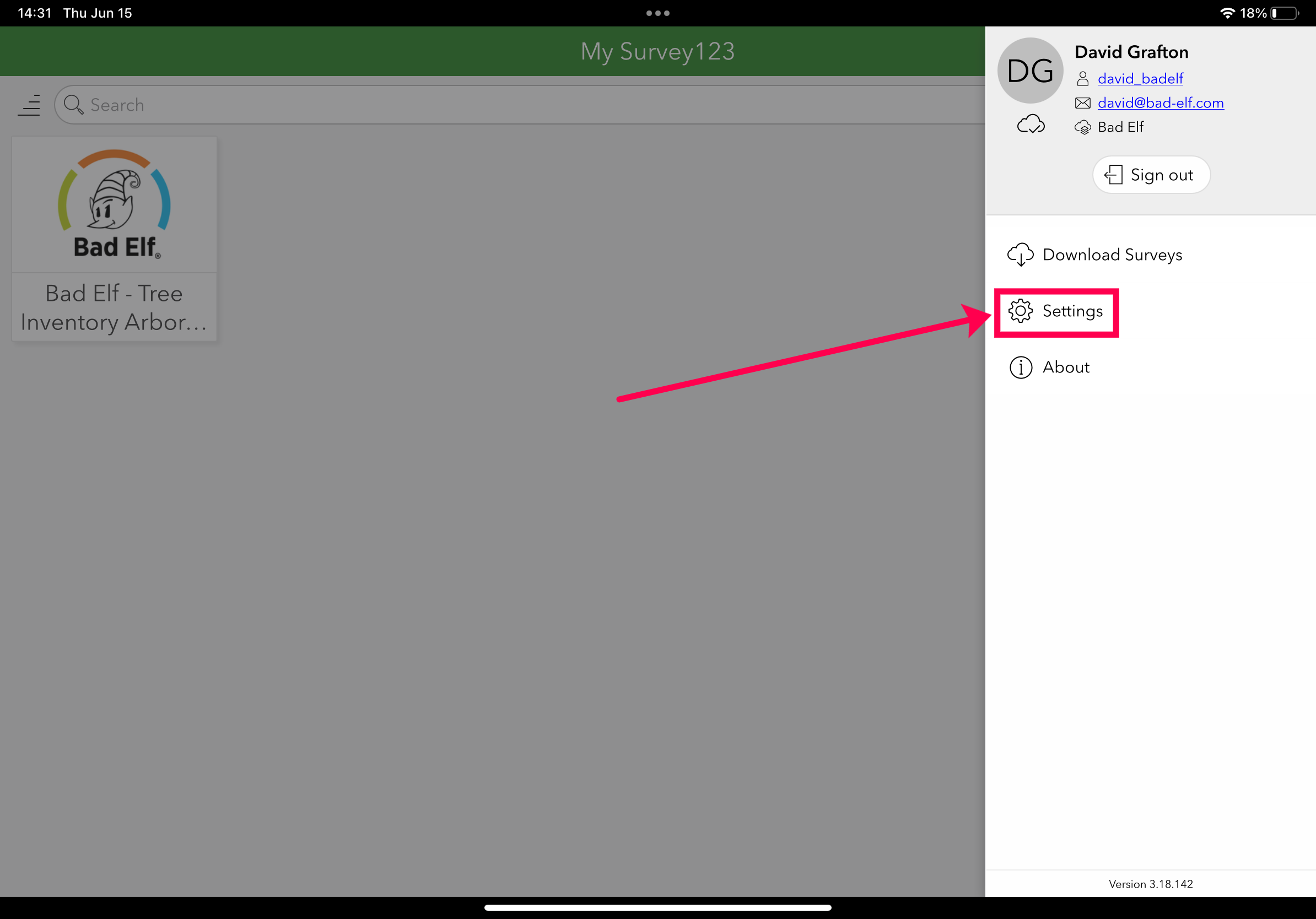

3. Click on the option Settings.

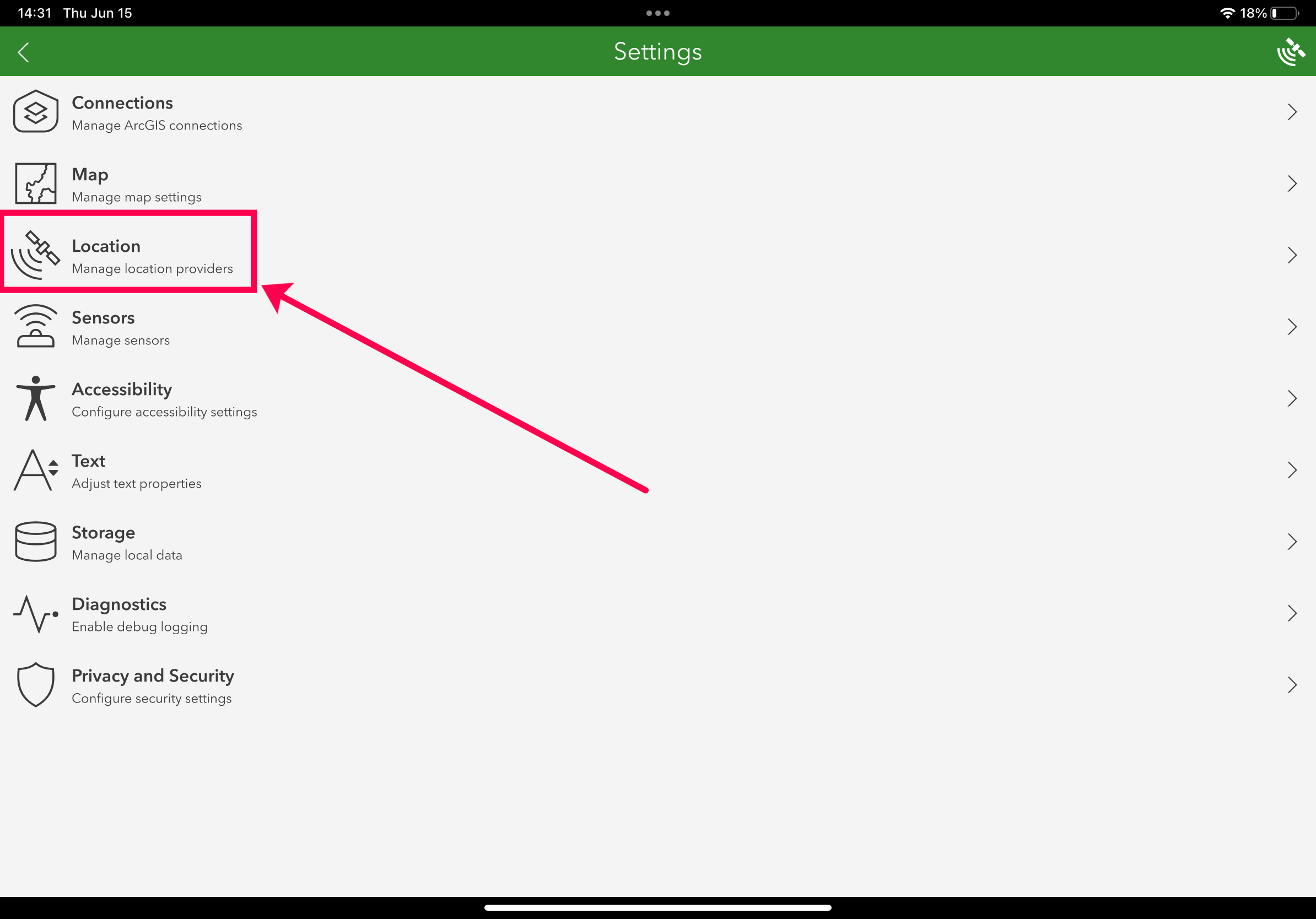

1. A settings screen appears similar to one shown below. Click on the option Location.

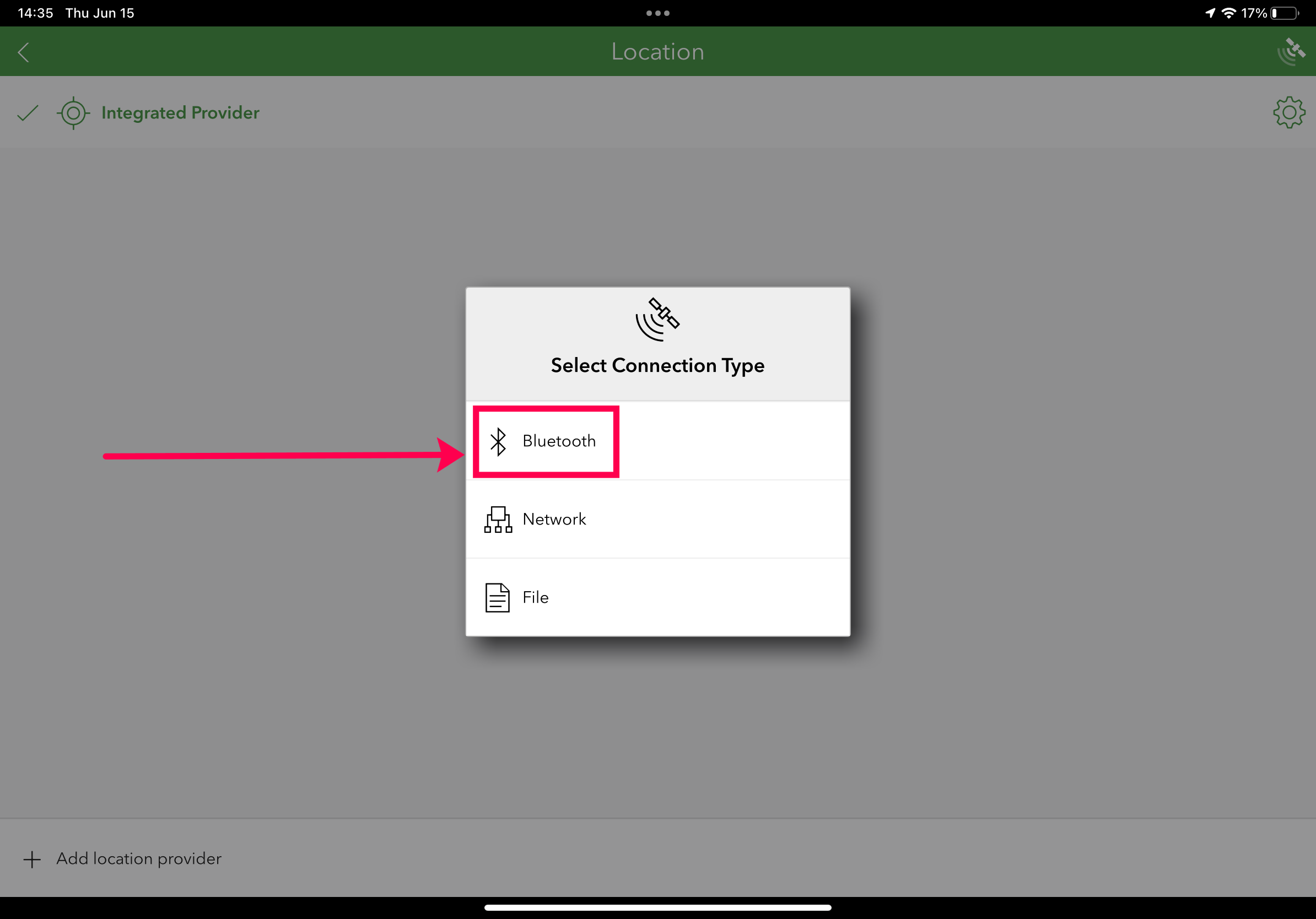

2. Survey123 for ArcGIS provides a list of connected GPS sources. The list shows configured receivers. If your Bad Elf receiver is not on the list, click on the option Via Bluetooth.


1. On the Add Provider screen confirm that External receiver is selected as well as Bluetooth, then toggle ON Discover. Since you have already paired your Bad Elf receiver with your phone or tablet, any available GPS receivers are shown in the list at the bottom.


1. Click on the item in the list that represents your Bad Elf receiver.
2. Enter a value for the option Antenna Height.


1. Tap on the back arrow to exit this screen.
2. When you return to the Location menu, it will now show the Bad Elf receiver. Ensure your Bad Elf receiver is in the list and is connected. If not, click on your Bad Elf receiver in the list to activate it.
3. You may now return to the main menu of Survey123 for ArcGIS and begin data collection. All location data delivered to Survey123 for ArcGIS comes from your Bad Elf receiver.

Note: When collecting data, Survey123 for ArcGIS alerts you to any loss of connection between your Bad Elf receiver and the phone or tablet.

Note: Screen layout and display content may vary between iOS and Android.
