Alert
Legacy Content: This article references our end of life product. For recommended product alternatives, see
Choosing the Right GPS/GNSS Receiver for Your Work →


The Elf needs a small amount of configuration to allow pairing with the foolography antennae.


  1. Your Bad Elf Bluetooth GPS needs to be ON and connected to your iOS device.

  2. Open our app and tap the entry for your Bad Elf

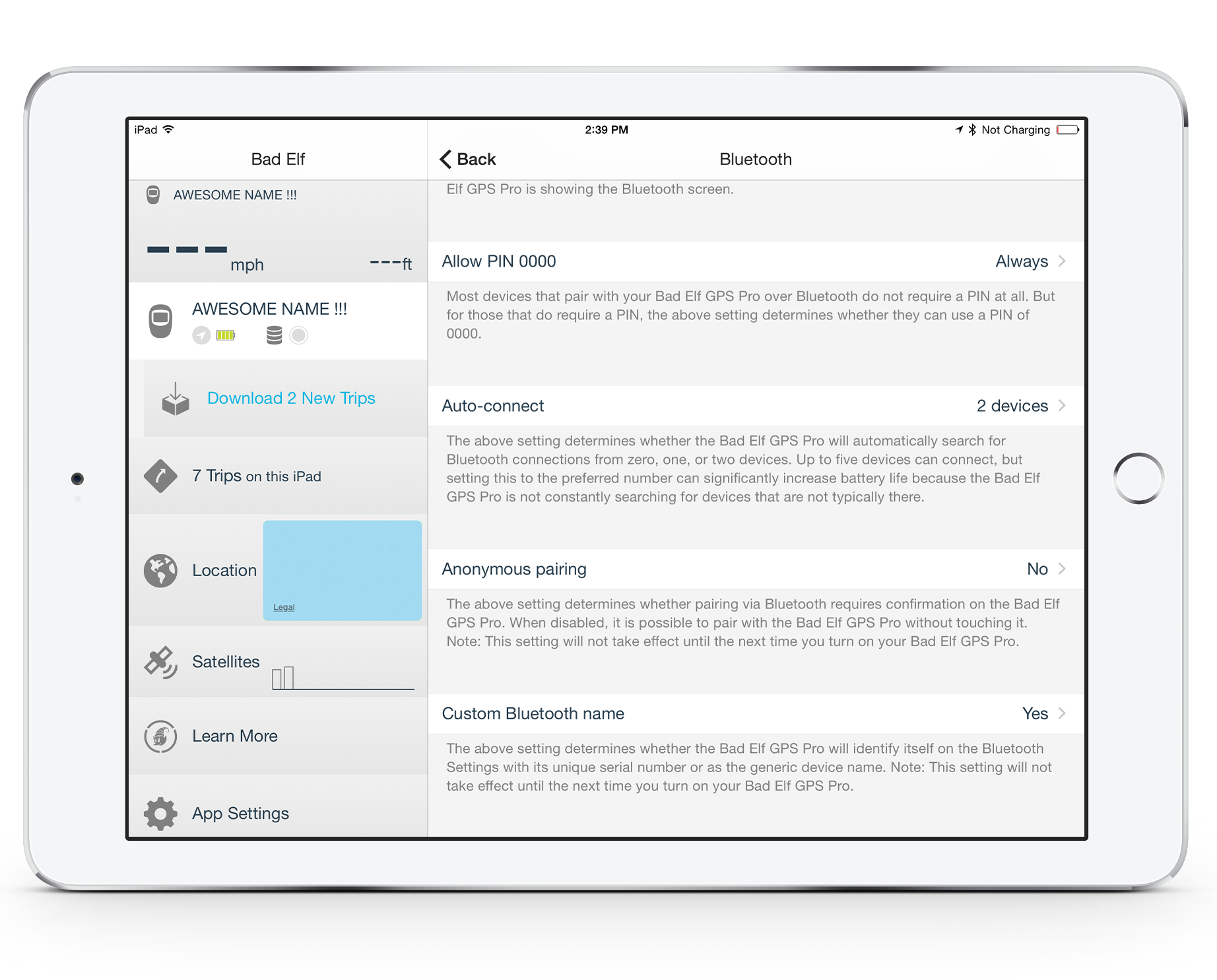

  3. Scroll down and select Bluetooth Settings, here we will need to make two changes from the default values.

    1. Allow Pin 0000 needs to be set to Always or Until power down

    2. Anonymous pairing needs to be set to Yes

For any further assistance, please contact our support team via support@bad-elf.com.
