Integration: Pairing with ArcGIS QuickCapture
This integration article will explain how to pair your Bad Elf GPS with ArcGIS QuickCapture.
- Pair your Bad Elf GPS to your phone via Bluetooth. Here are a few guides for iOS and Android:
Bluetooth GPS: Pairing a Bluetooth Bad Elf with iOS
Bluetooth GPS: Pairing a Bluetooth Bad Elf with Android
Bad Elf Flex: Bluetooth Pairing with iOS

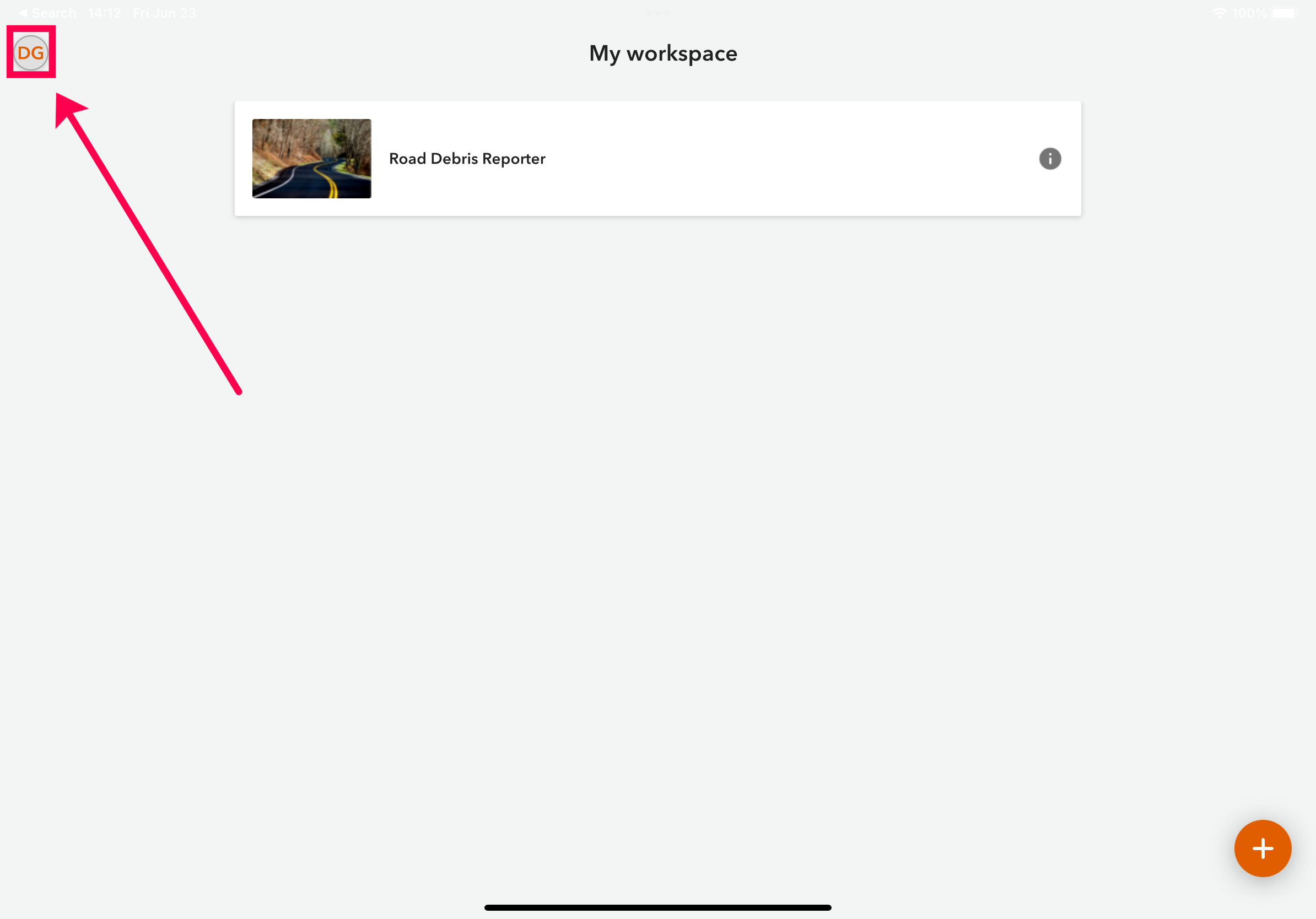

Bad Elf Flex: Bluetooth Pairing with Android - Open QuickCapture> tap the Settings icon

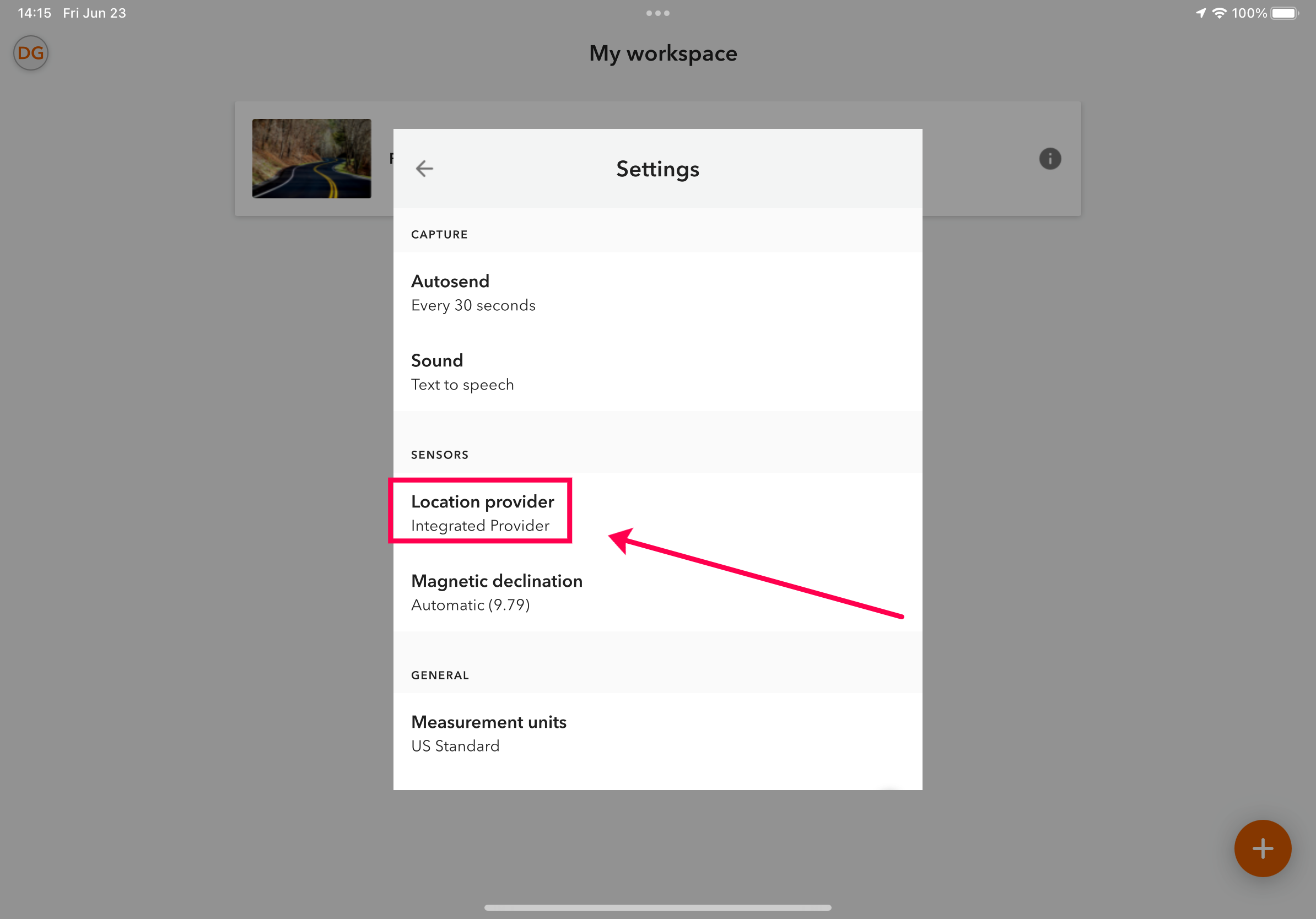

- Under Settings> Sensors > tap Location Provider

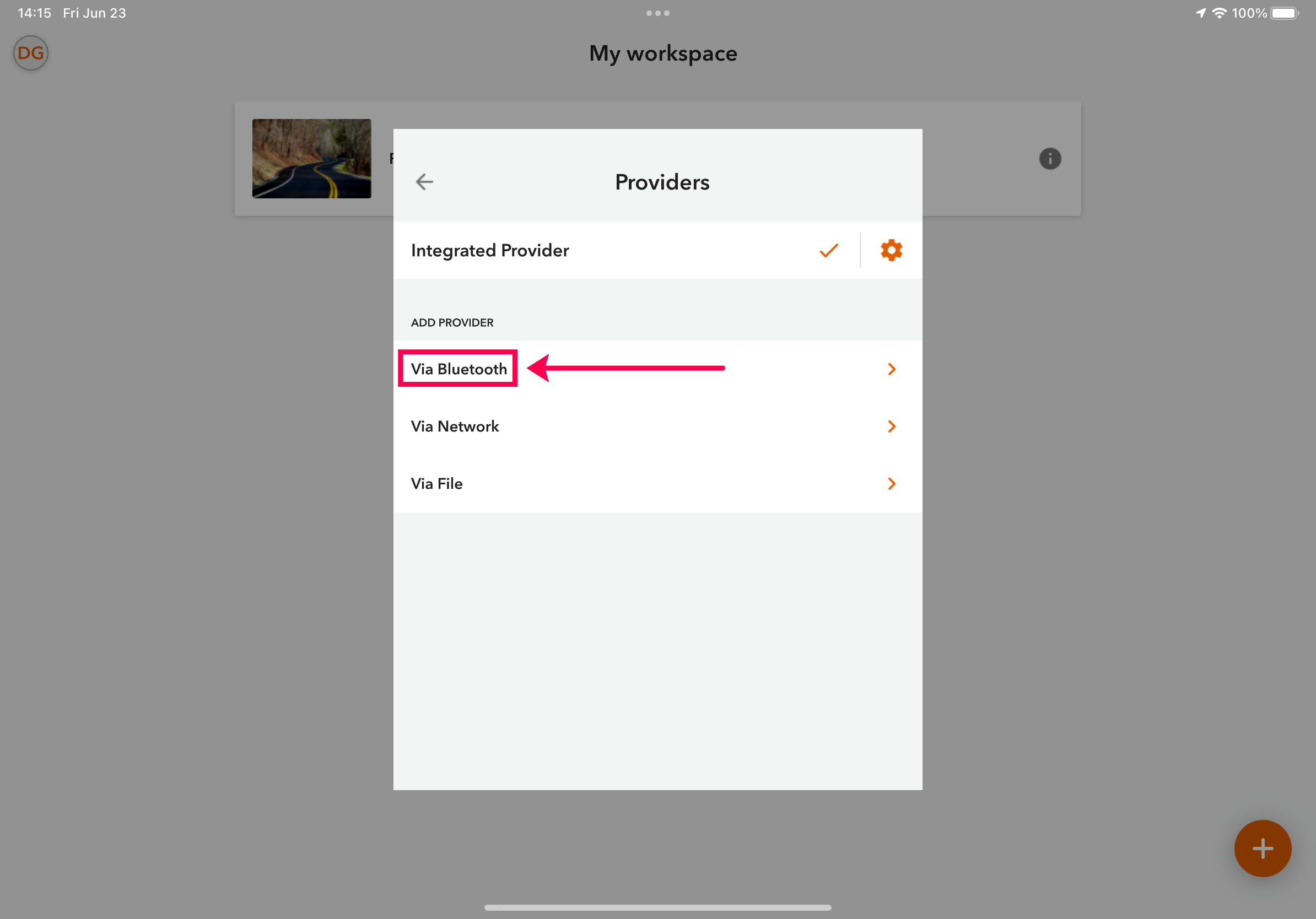

- In Location Providers, tap Add Provider -> Via Bluetooth then select your device (If your device is not a part of this list you will have to check your Bluetooth connection status between your Bad Elf and your phone/tablet)

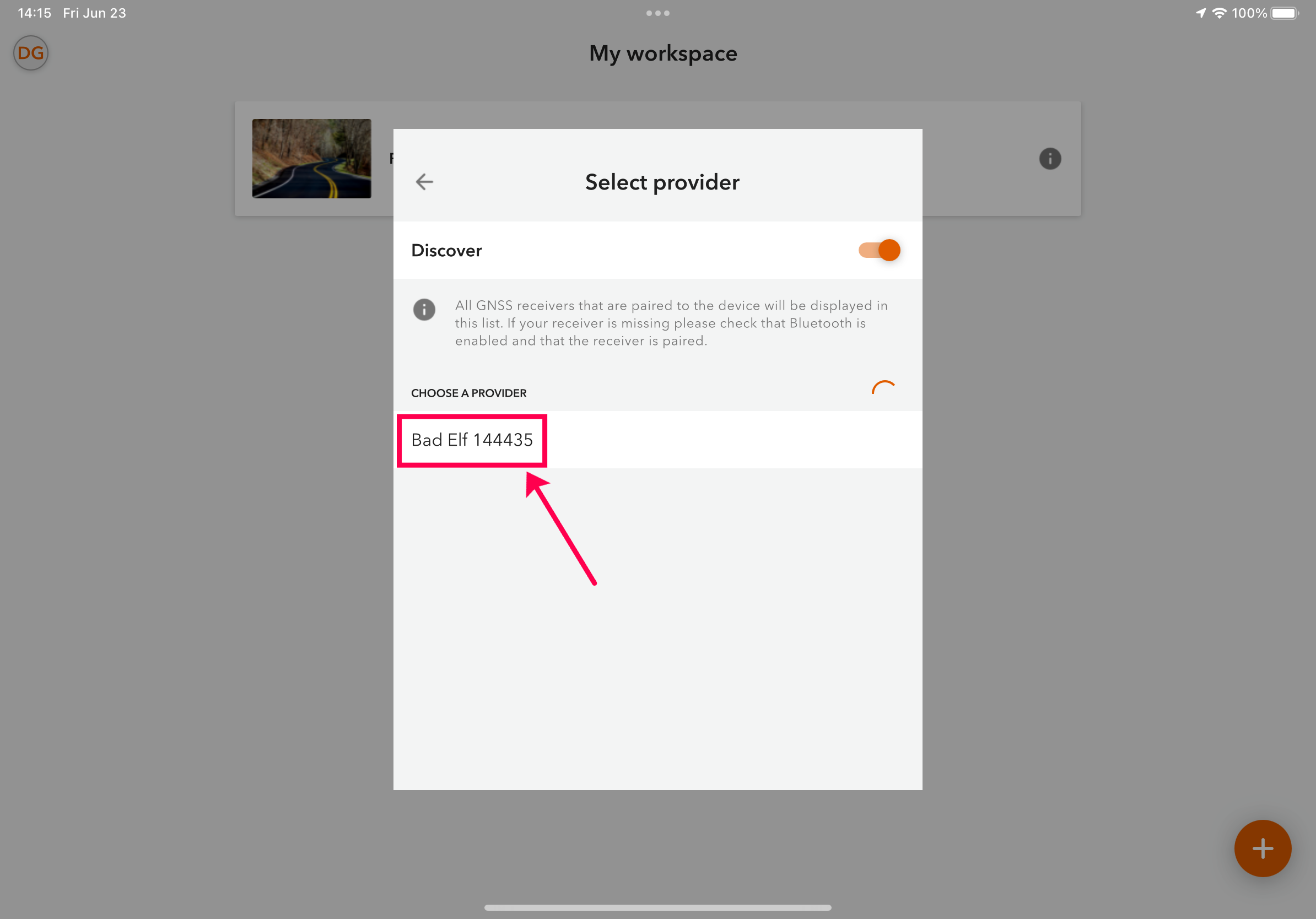

- Select Bad Elf ######

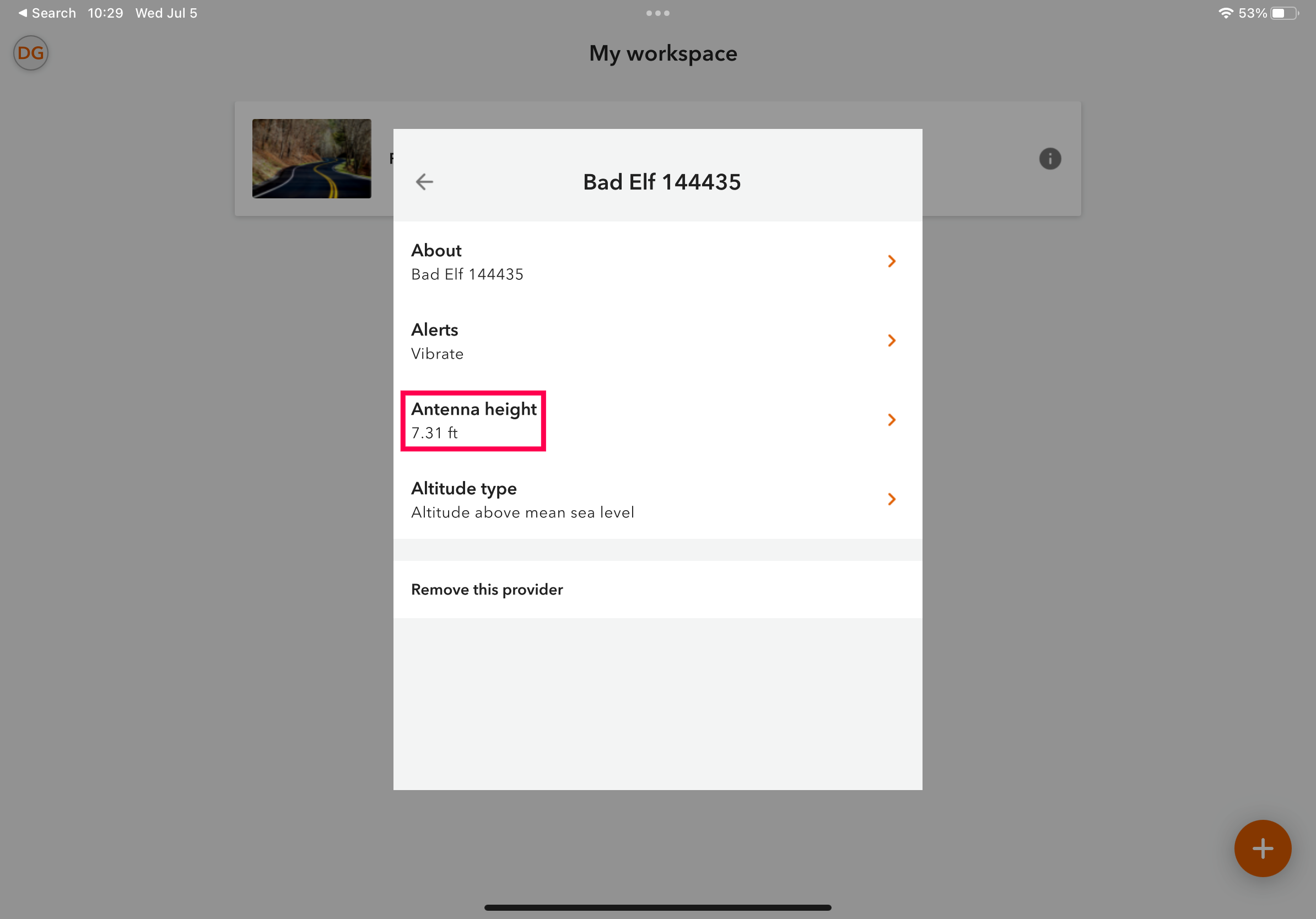

- After selecting the Bad Elf receiver, select the appropriate height for the antenna.
If height is not relevant for you, leave this setting at 0. Otherwise, we suggest using a pole
with a fixed height. Simply enter the pole height and the additional antenna offset for

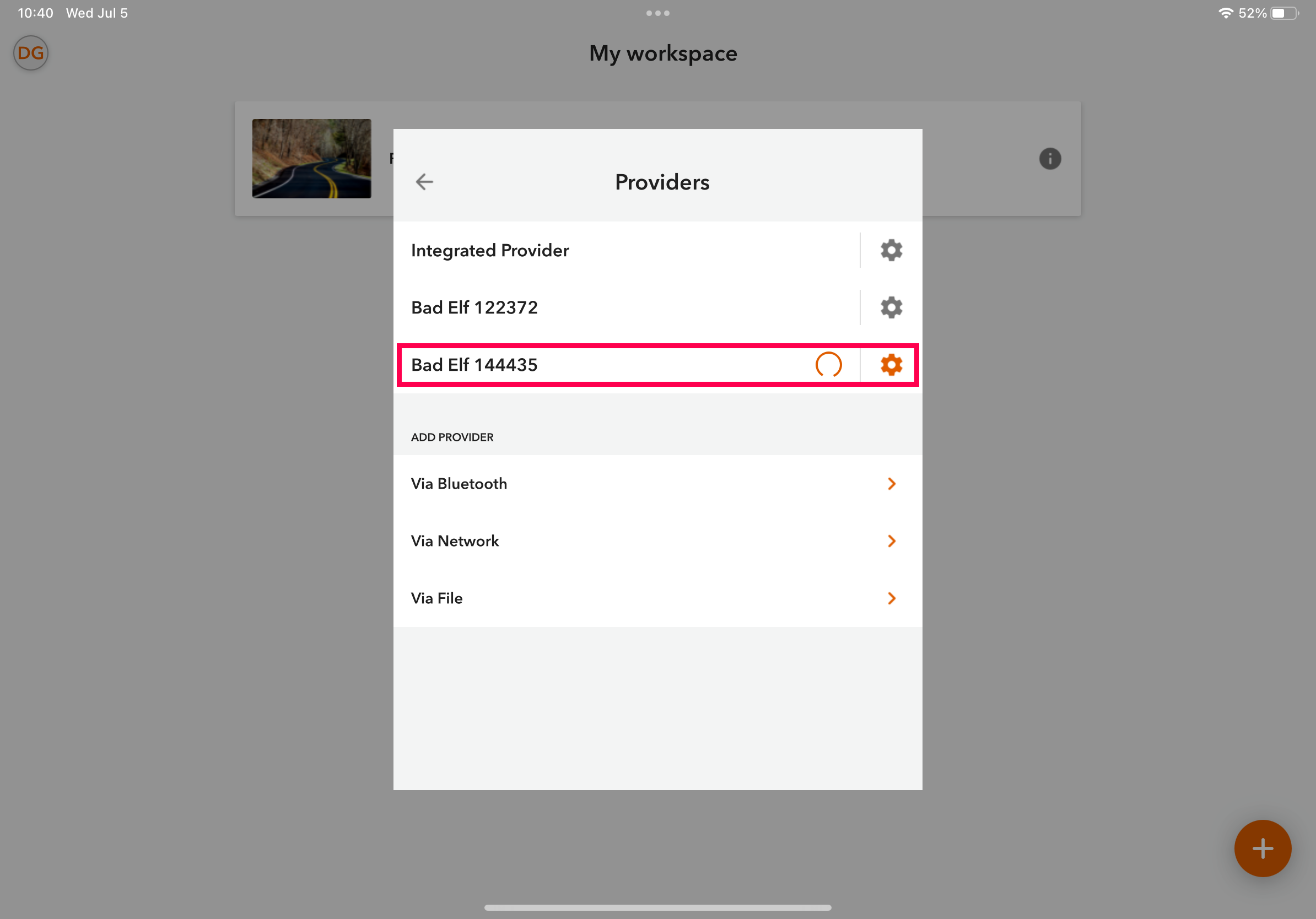

the GPS unit. The Bad Elf Flex antenna offset is 23 cm above the base of the receiver. - Once complete, select the Bad Elf GNSS receiver from the Location Provider screen.
Ensure the check-mark is displayed next to the Bad Elf receiver.
